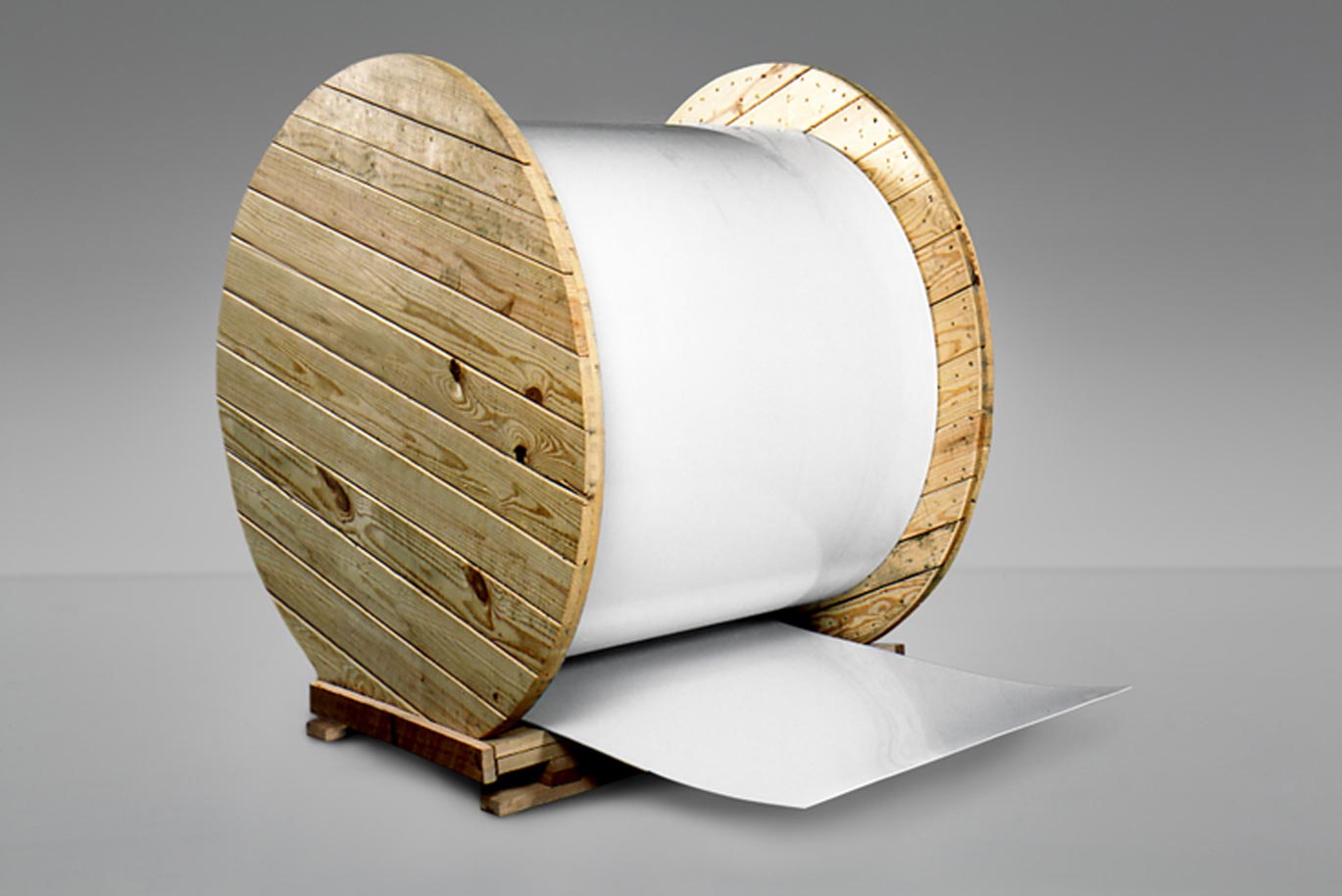

Roll Stock Acrylic
OPTIX SG Acrylic, MUSTANG copolyester, DURAPLEX SG05 and SG10 are available in roll stock for the Sign market. Roll Stock allows for better total sheet usage, less seams and joints in finished signs, and provides better inventory space utilization.
Product Details
Run-to-size
Roll stock
- Thickness: .118" - .236"
- Width: 30" - 104"
- Length: 250" - 500"
- Features: Weatherable
- Available in a thickness range from .118" - .236"
- Available widths from 30" - 105"
- .118" thickness available upto 500' length
- .150" thickness available upto 400' length
- .177" thickness available upto 350' length
Download
| Physical | Test method | Units | OPTIX | DURAPLEX OPTIX SG05 (50%) | DURAPLEX OPTIX SG10 (100%) |
|---|---|---|---|---|---|
| Specific Gravity | ASTM D-792 | 1.19 | 1.17 | 1.15 | |
| Optical Refractive Index | ASTM D-542 | nD | 1.49 | ||
| Light Transmission -Total | ASTM D-1003 | % | 92 | 92 | 90 |
| Light Transmission - Haze | ASTM D-1003 | % | 2 | 2 | >3 |
| Sound Transmission | ASTM E90 / E413 | db | 27 | ||
| Water Absorption | ASTM D-570 | % By wt | 0.4 | 0.3 | 0.3 |
| Shrinkage | ASTM D-702 | % | <5 | ||
| Mold Shrinkage | ASTM D-955 | mils/in | 3-6 | 3-6 |
| Chemical | Test method | Units | OPTIX |
|---|---|---|---|
| Resistance to Stress - Critical Crazing Stress to: Isopropyl Alcohol | ARTC Modification of MIL-P6997 | psi | 900 |
| Resistance to Stress - Critical Crazing Stress to: Lacquer Thinner | ARTC Modification of MIL-P6997 | psi | 500 |
| Resistance to Stress - Critical Crazing Stress to: Toluene | ARTC Modification of MIL-P6997 | psi | 1,300 |
| Resistance to Stress - Critical Crazing Stress to: Solvesso 100 | ARTC Modification of MIL-P6997 | psi | 1,600 |
| Mechanical | Test method | Units | OPTIX | DURAPLEX OPTIX SG05 (50%) | DURAPLEX OPTIX SG10 (100%) |
|---|---|---|---|---|---|
| Tensile Strength | ASTM D-638 | psi | 11,030 | 8,000 | 5,600 |
| Tensile Elongation – Max. | ASTM D-638 | % | 5.8 | ||
| Tensile Modulus of Elasticity | ASTM D-638 | psi | 490,000 | 340,000 | 250,000 |
| Flexural Strength | ASTM D-790 | psi | 17,000 | 12,000 | 8,300 |
| Flexural Modulus of Elasticity | ASTM D-790 | psi | 490,000 | ||
| Izod Impact Strength – Molded Notch | ASTM D-256 | ft-lb/in Notch | 0.4 | 0.7 | 1.1 |
| Izod Impact Strength – Milled Notch | ASTM D-256 | ft-lb/in Notch | 0.28 | ||
| Tensile Impact Strength | ASTM D-1822 | ft-lb/in2 | 20 | ||
| Abrasion Resistance - Change in Haze - 0 cycles | ASTM D-1044 | Haze, % | 0 | ||
| Abrasion Resistance - Change in Haze - 10 cycles | ASTM D-1044 | Haze, % | 11.2 | ||
| Abrasion Resistance - Change in Haze - 50 cycles | ASTM D-1044 | Haze, % | 24 | ||
| Abrasion Resistance - Change in Haze - 200 cycles | ASTM D-1044 | Haze, % | 24.9 | ||
| Rockwell Hardness | ASTM D-785 | M-95 | M-68 | M-46 |
| Thermal | Test method | Units | OPTIX |
|---|---|---|---|
| Maximum Recommended Continuous Service Temperature | °F | 170-190 | |
| Softening Temperature | °F | 210-220 | |
| Melting Temperature | °F | 300-315 | |
| Melt Flow Rate | ASTM D-1238 | g/10 min. | 1.5 |
| Deflection Temperature 264 psi | ASTM D-648 | °F | 203 |
| Deflection Temperature 66 psi | ASTM D-648 | °F | 207 |
| Coefficient of Thermal Expansion - 30 to 30°C | ASTM D-696 | in/(in-°F ) x 10-5 | 3.0 |
| Thermal Conductivity | ASTM C-177 | BTU-ft/(hr-ft2-°F) | 0.075 |
| Flammability (Burning Rate) | ASTM D-635 | In/minute | 1.019 |
| Smoke Density Rating | ASTM D-2843 | % | 3.4 |
| Self-Ignition Temperature | ASTM D-1929 | °F | 833 |
| Flame Spread Index | ASTM E84 | 115 | |
| Smoke Developed Index | ASTM E84 | 550 |
These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale.
