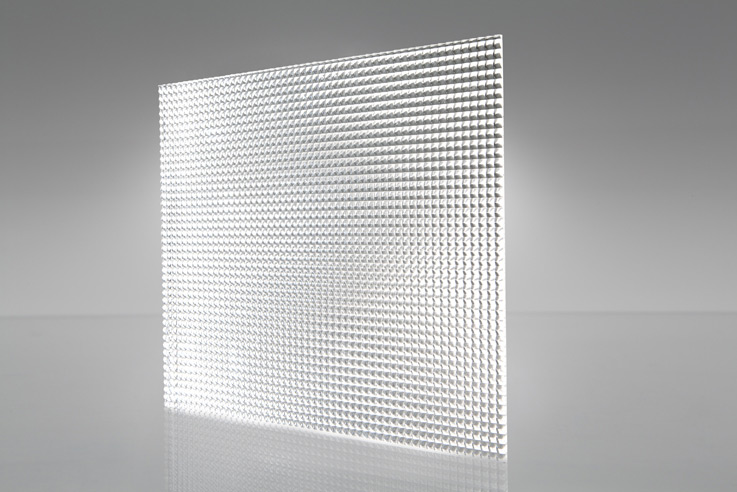

KSH®-19 Acrylic Lighting Panels
The industry standard for controlling high-angle brightness, the KSH-19 is an acrylic prismatic lighting panel with a 3/16" square base male conical prism. The KSH-19 is designed to control and direct fluorescent and HID lighting while providing visual comfort in today's sophisticated work environments. KSH-19 lenses may be ordered to custom specifications. Available in clear and frost versions.
Run-to-Size Capabilities
Custom colors available.
**Colors on screen may not reflect exact matches to physical sheets.
*Non-Stock colors, patterns or sizes may require a minimum quantity order.
Raised prismatic pattern of male cones running parallel and perpendicular to the length and width of the panel
Available in .156" & .187" thicknesses
Sheet sizes include 23.75" x 47.75", 24" x 48" & 50" x 51"
| REQUEST | ITEM # | COLORS | PATTERN/TEXTURES | MASKING | THICKNESS (in.) | SIZE (in.) | SQ FT | PACK QTY | SKID QTY |
|---|---|---|---|---|---|---|---|---|---|
 |
195121-1 | Clear | 3/16" Sq. Base Male Conical Prism | No Masking | .156 | 23.75” x 47.75” | 7.875 | 20 | |
|
195130-1 | Clear | 3/16" Sq. Base Male Conical Prism | No Masking | .156 | 50” x 51” | 17.708 | 200 | |
|
195136-1 | Silvertint | 3/16" Sq. Base Male Conical Prism | No Masking | .156 | 23.75” x 47.75” | 7.875 | 20 | |
|
196032-1 | Clear | 3/16" Sq. Base Male Conical Prism/Frost | No Masking | .156 | 23.75” x 47.75” | 7.875 | 200 | |
|
195242-1 | Clear | 3/16" Sq. Base Male Conical Prism | No Masking | .187 | 23.75” x 47.75” | 7.875 | 15 | |
|
195000-1 | Clear | 3/16" Sq. Base Male Conical Prism | No Masking | .256 | 23.75” x 47.75” | 7.875 | 30 |
